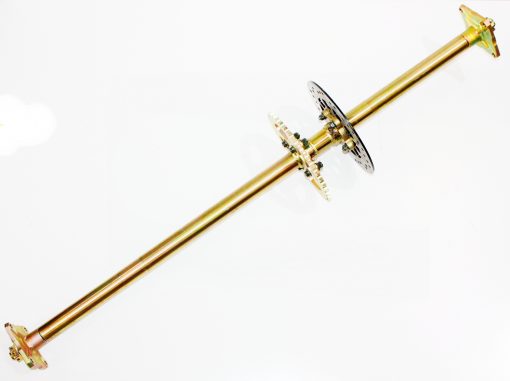

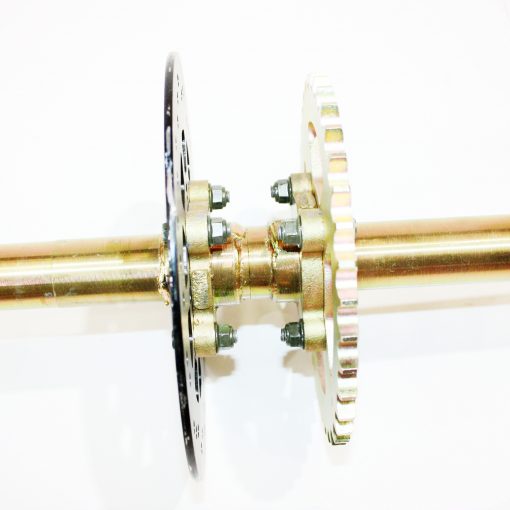

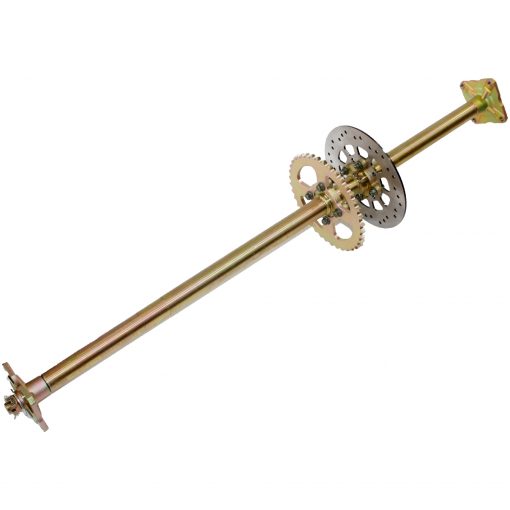

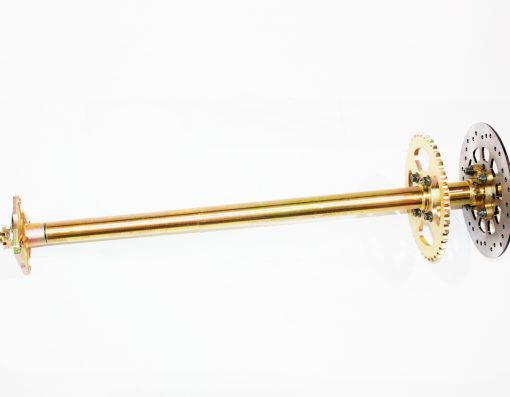

1140mm Rear Axle Assembly Sprocket Rotor 250cc Quad Dirt Bike ATV Dune Buggy

SKU:PA15-A Brand New 1140mm Rear Axle Assembly 4 Stud Hubs Rear Sprocket Brake Rotor Disc 150cc 250cc Quad Dirt Bike ATV Dune Buggy LEIGTH OF AXLE approx 1140mm DIAMETER OF THE AXLE approx 35mm FROM OUTSIDE EDGE OF HUB TO BRAKE ROTOR DISC approx 345mm FROM OUTSIDE EDGE OF HUB TO REAR SPROCKET approx 665mm DISTANCE BETEEN BRAKE ROTOR DISC AND REAR SPROCKET approx 65mm DIAMETER OF BRAKE ROTOR DISC approx 220mm DIAMETER OF REAR SPROCKET approx 195mm 530-37T WHEEL MOUNTING DISTANCE OF THE WHEEL HUB (BOLT CENTRE TO BOLT CENTRE) approx 77mm / 108mm Tag : PIT Bike, Dirt Bike, Quad Bike, ATV, Dune Buggy, UTV, Gokart, 4 Wheeler. Motorcross Bike, Mx Bike
