YX GPX 160cc Complete Engine Cylinder Barrel Head PIT PRO TRAIL POSTIE DIRT BIKE

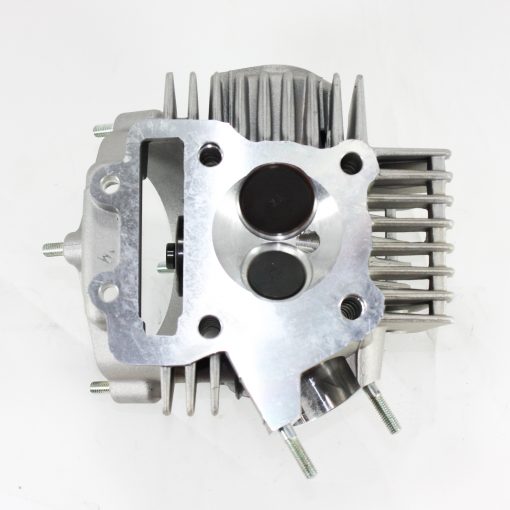

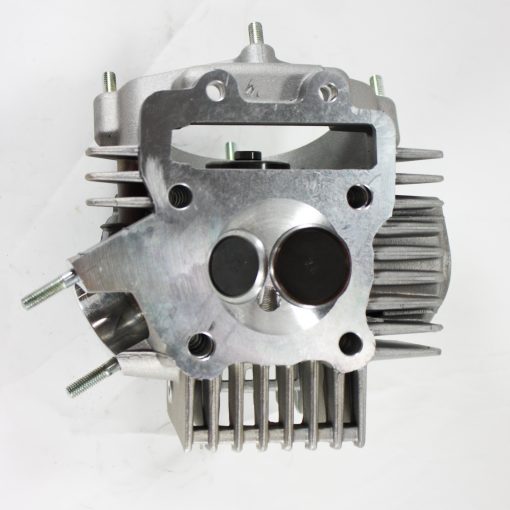

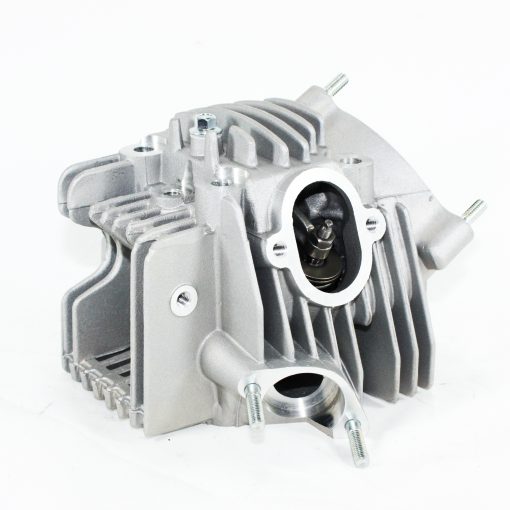

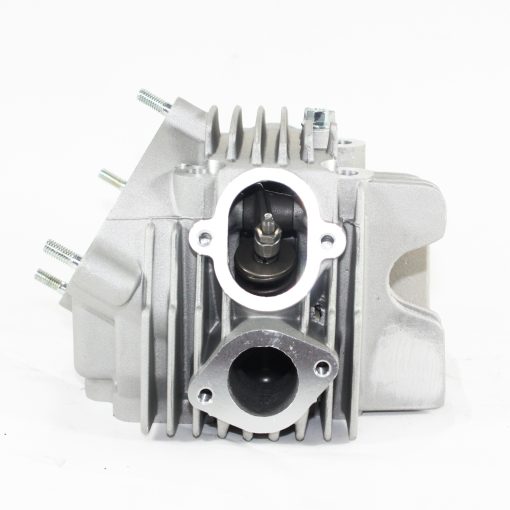

SKU:T185__S3B Brand New Engine Barrel Head Set Fit YX 150cc 160cc Engine PIT PRO PIT Bike Trail Dirt Bike Thumpstar Quad ATV Go Kart Dune Buggy DISTANCE BETWEEN VALVE COVER BOLTS (TWO ROUND HOLES; HOLE CENTRE TO HOLE CENTRE) approx 46.15mm DISTANCE BETWEEN CAM SHAFT COVER BOLTS (THE BIG HOLE) LEFT TO RIGHT approx 117.55mm DISTANCE BETWEEN CAM SHAFT COVER BOLTS (THE BIG HOLE) TOP TO BOTTOM approx 89.57mm DISTANCE BETWEEN CARBY MANIFOLD MOUNTING HOLES (HOLE CENTRE TO HOLE CENTRE) approx 44.90mm DISTANCE BETWEEN TOP END COVER (RECTANGLE ONE; HOLE CENTRE TO HOLE CENTRE) approx 69.35mm / 57.42mm / 58.30mm / 57.90mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
